E-SYSTEM | BOSCH PT-CX7K4 |

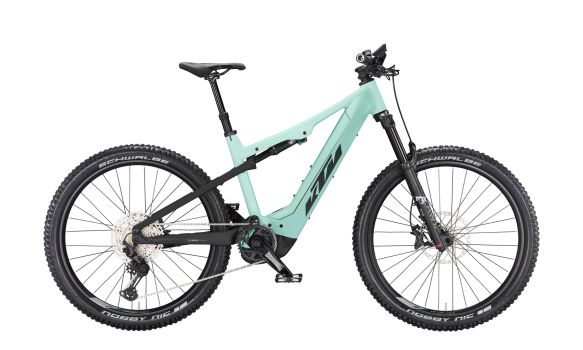

RAHMEN | Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT750 Bosch Gen.4 / M-2296 |
GABEL | FOX 34 Float AWL 27.5" e-bike 140mm 15x110 |
DÄMPFER | FOX Float DPS Performance 230x62.5 |
MOTOR | Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm |
DISPLAY | Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT Display SMART SYSTEM |
BATTERY | Bosch PowerTUBE 750Wh SMART SYSTEM hor. |
LADEGRÄT | Bosch STANDARD Charger 4A SMART SYSTEM |
SCHALTWERK | Shimano Deore XT M8100-12 SGS shadow+ |
SCHALTHEBEL | Shimano Deore M6100-12 display |
KURBEL | KTM E-TRAIL ISIS 170mm Q16 |
VORDERES KETTENBLATT | FSA Megatooth steel 36T 12speed Direct Mount |
HINTERES KETTENBLATT | Shimano Deore M6100-12 / 10-51 |
KETTE | Shimano M6100-12 |
BREMSE | Shimano Deore M6100 / M6120 4-Piston |
BREMSSCHEIBE | Shimano RT64 CL 203 / 180 |
VORDERRAD | KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black |
HINTERRAD | KTM Line - Shimano MT410B CL 32H 148-12TA / Ambrosio E30 Trail 32H 584x30TC / DT Alpine II 2.34 black |
VORDERREIFEN | Schwalbe Nobby Nic Perf. Folding 65-584 |
HINTERREIFEN | Schwalbe Nobby Nic Perf. Folding 65-584 |
HANDGRIFF | Ergon GA20 |
LENKER | KTM COMP II Trail35 rizer15 760mm |
LENKERVORBAU | KTM TEAM II Trail35 |
GABELLAGERUNG | Acros AICR internal 1.1/8"-1.5" angle limit |
SATTEL | Selle San Marco Ground Short Open Fit Narrow |
SATTELSTÜTZE | KTM COMP II dropper internal |
PEDALE | MTB-Pedal flat VPE-527 alloy |
GEWICHT | 26,20 kg |
HÖCHSTZULÄSSIGES GESAMTGEWICHT | 145 kg |
